​Noise Filter 취급품목

SQ5 Series

3-Phase Filters

SQ5 PIC.png

Features

- 3-phase, 4-line type
- Good shield effect by using metal case
- Epoxy molded for reliability
- Compact and economical

Description

Applications

- Digital equipments

- Suitable for FA equipments

- Computerized washing machines

- Industrial equipments like UPS, inverters, converters

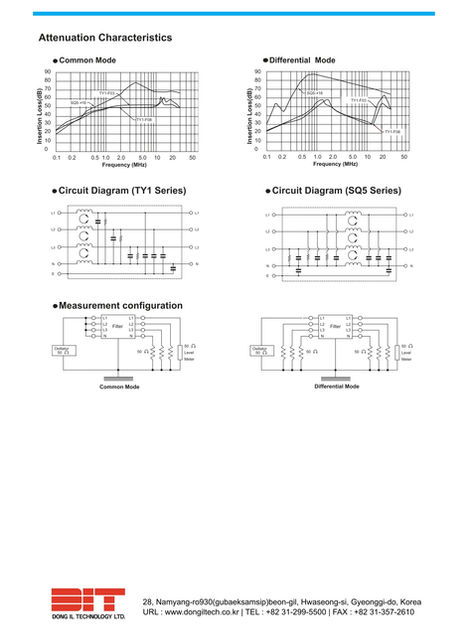

SQ5 Series PDF File Download

Series

Rated Voltage

Rated Current

Approvals

Cover

Mounting Method

Output Method

SQ5 Series

~440V AC 50/60Hz
(4 Line)

16A

UL

Metal

Screw

Faston Tab #250
M4 stud

※ 모든 첨부자료와 정보들은 (주)동일기연에서 출처된 내용입니다.
